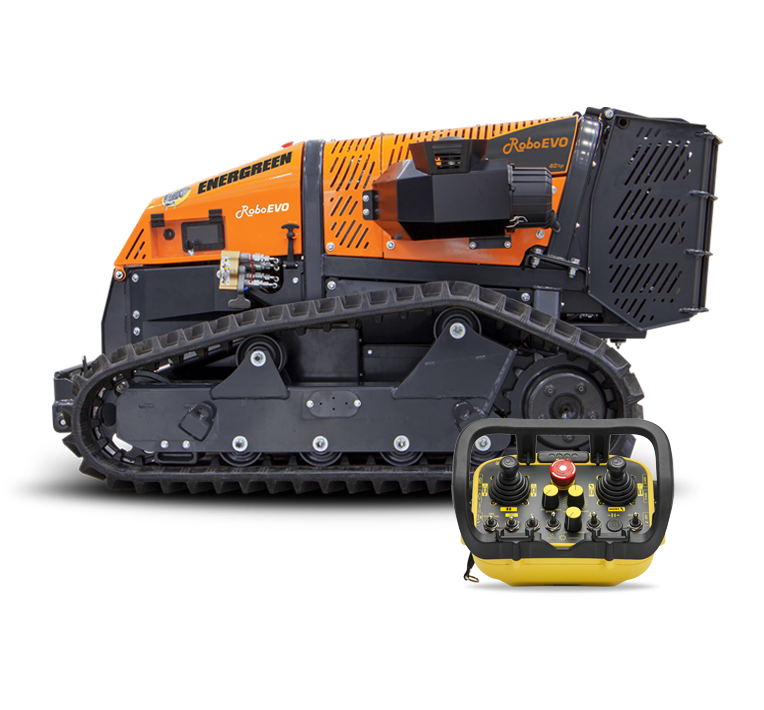

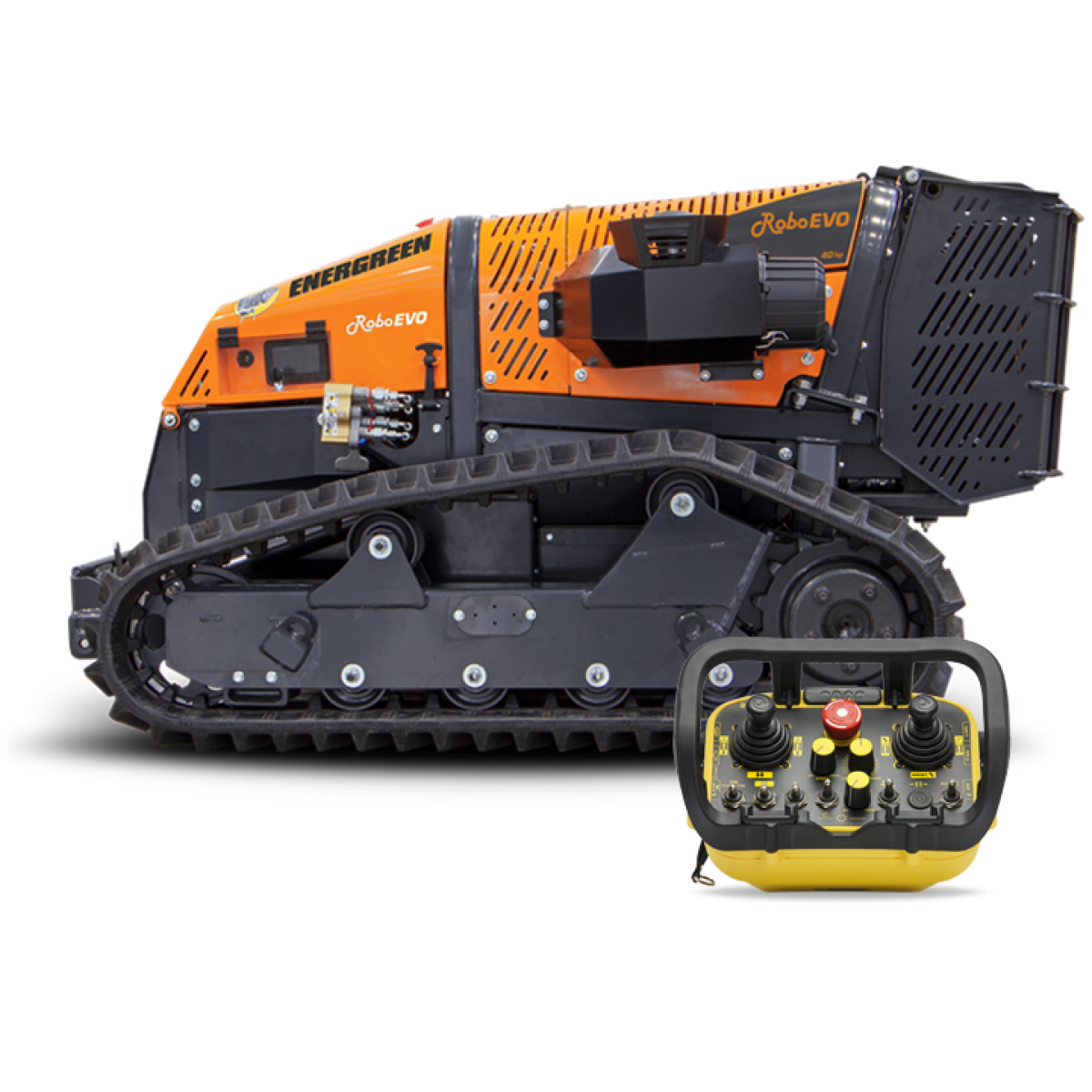

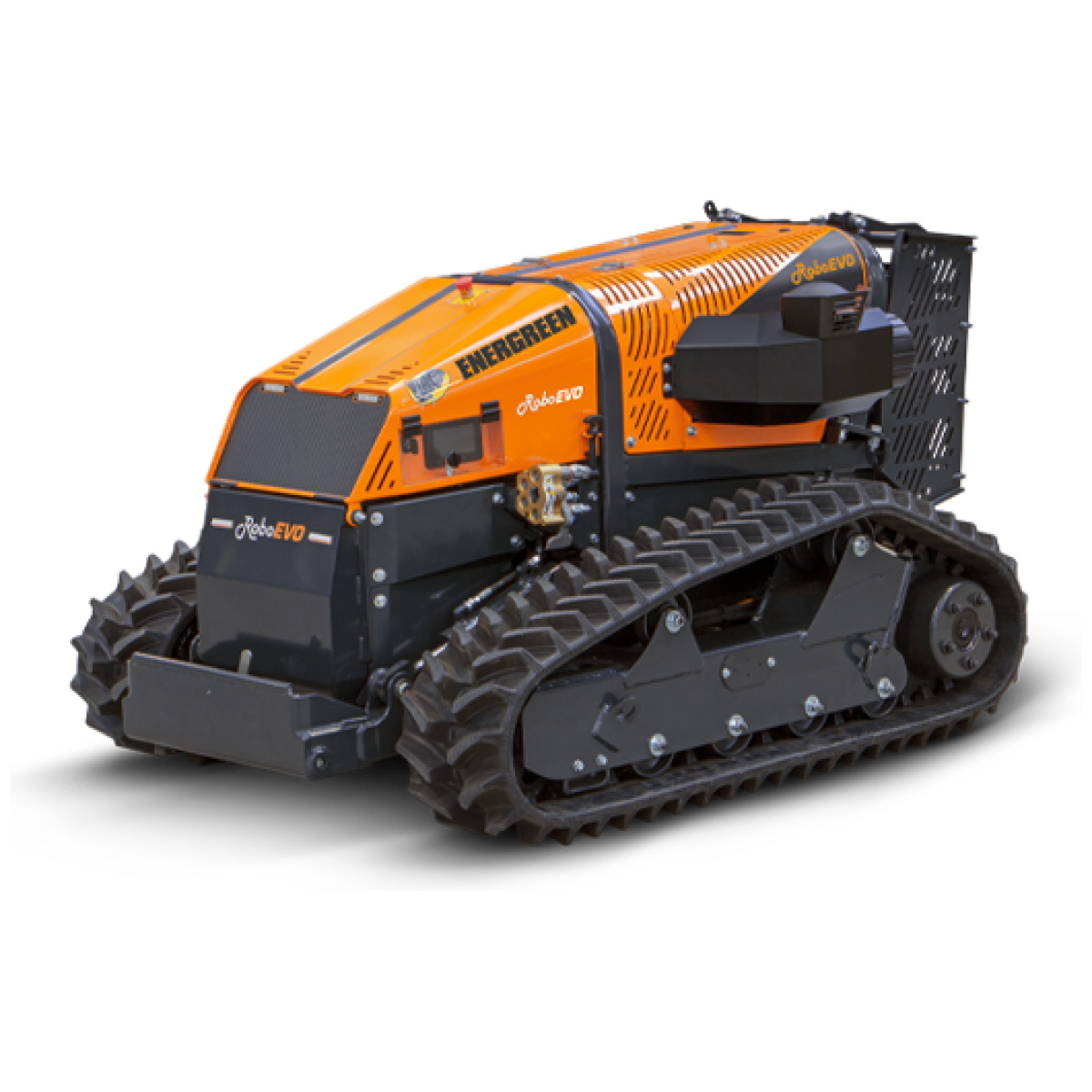

Hallasláttuvél Robo Evo (RC)

The machine is equipped with a 40 HP Diesel engine, tracks with hydraulic tensioning system
and a specific tracks profile that allows a perfect ground surface contact to climb over hill and
mountain areas, embankments, cliffs, and in all those environments where the adherence is very
low and a machine for high slopes is required.
The implements are mounted on a front hydraulic lifter which allows a quick-change system,
making the work easier and multi-functional. The front lifter is able to work in three different
ways: standard, floating and suspended thanks to an hydraulic accumulator. For the implements
there are always one high flow closed circuit hydraulic line and two duoble effect open circuit
hydraulic lines; all the lines are equipped with quick couplings. Lifter and hydraulic connections
allows the perfect match with all the previous and current equipments provided by Energreen.
Standard set up
ENGINE:
• YANMAR 3TNV88C 3-cylinder, 4-stroke, naturally aspirated, diesel, liquid-cooled engine
• Displacement 1.6 l
• Power 27.5 kW @ 3000 rpm
• Direct injection and electronic engine management via ECU
• Exhaust gas emission reduction system through EGR, DPF and without DEF (Ad-Blue)
• Emissions class EU Stage V
• Modified engine oil sump to guarantee lubrication up to 55° of inclination
• Reversible self-cleaning fan
• Single reinforced two-section radiator for coolant and hydraulic oil
• Positioning of the air filter on the left side of the machine body with quick access for maintenance
HYDRAULIC SYSTEM:
• Hydraulic system with Q8 HELLER46 mineral oil
• Dedicated oil cooling section into the machine radiator
• High pressure anti-abrasion flexible hoses
• Screw-on quick couplings
• Pressurized hydraulic circuit and immersion filter inside the tank
• Traction of each track by motor wheel operated by a dedicated closed circuit piston pump
• Double forward speed through hydraulic variation of the motor wheel displacement
• Hydraulically operated negative brake inside the motor wheel
• Gear pump in open circuit and multi-section electro-hydraulic distributor for services
• Closed circuit piston pump for the high flow output
• Hydraulic track tensioning with automatic pressure maintenance system
• Floating system of the lifter controlled by an electrohydraulic distributor
• Pneumohydraulic suspension system of the lifter obtained by means of a nitrogen accumulator
FRAME:
• Steel monocoque supporting structure
• Double steel roll-bar integrated into the machine body
• N. 4 hooks for lifting the machine on the frame
• Transmission drive wheels with hardening heat treatment
• Front idle wheels with hardening heat treatment
• Tracked undercarriage with 6 sliding rollers and front and rear track guiding shoes
• Hydraulically operated track tensioner equipped with safety nitrogen accumulator
• Machine body hoods in painted steel
• Air filter protection in painted steel
• Rear radiator protection grille in painted steel and quick opening
• Mechanical quick coupling for the tool on the front lifter equipped with security lever
• 26 l painted steel diesel tank
• 25 l painted steel hydraulic oil tank
SYSTEM & COMMANDS:
• AUTEC radio control with a range of 150 m working with FHSS technology
• N. 2 remote control batteries
• Remote control battery charger with lighter socket (10-30 V DC)
• Emergency button on remote control with immediate stop of the machine active functions
• Advancement controlled through single axis proportional joystick
• Steering and lifter management controlled through two-axis proportional joystick
• Potentiometer for controlling the maximum advancement speed (variable from 0 to 100%)
• Potentiometer for the correction of the trajectory and reduction of the drift in advancement
• Potentiometer for adjusting the flow of the high flow output
• Three-way selector for selecting the lifter operating mode (standard/floating/suspension)
• Double-effect hydraulic lines controlled through on/off control levers
• Armored carrying case for remote control and accessories supplied with the machine
(weatherproof and shockproof)
